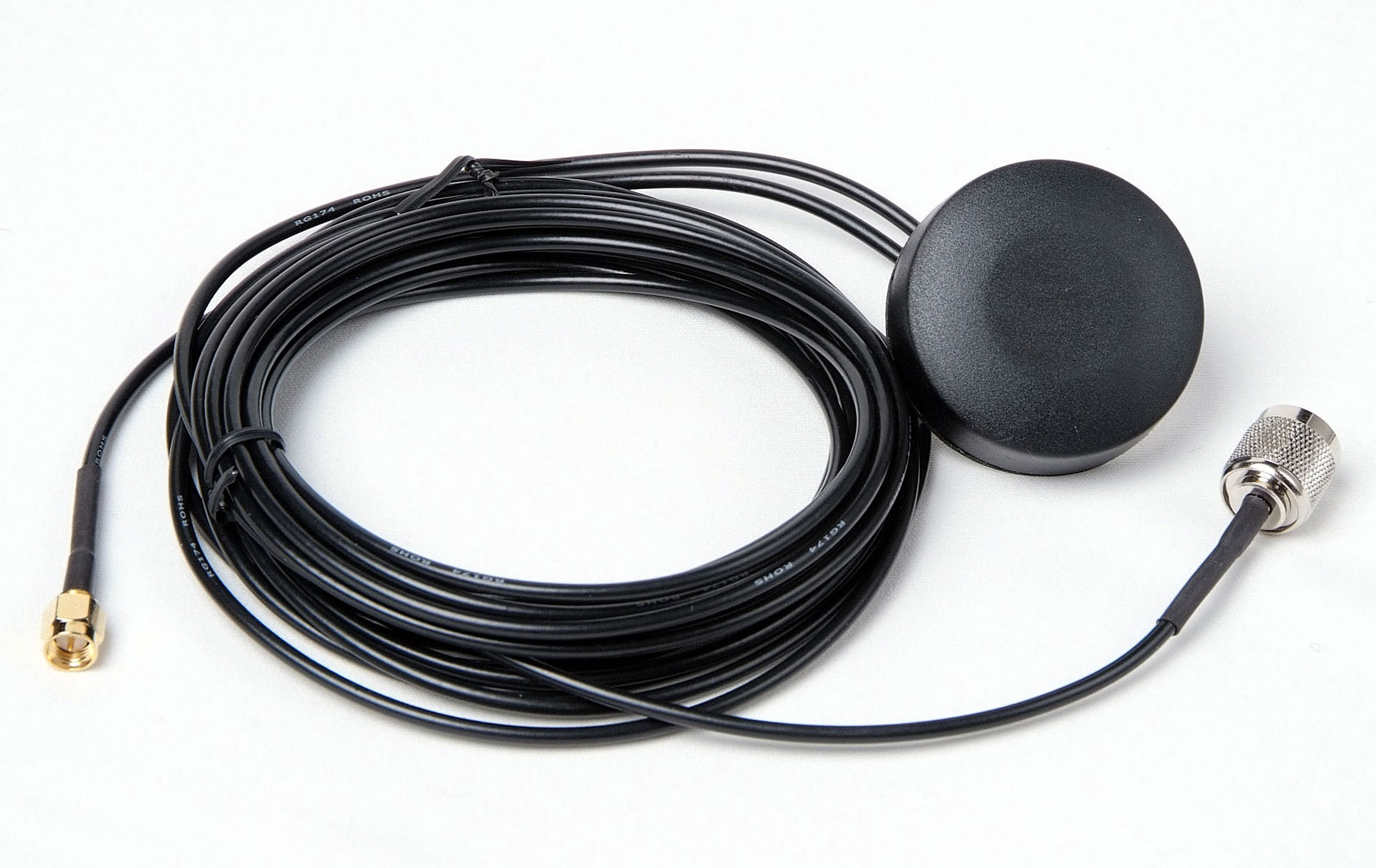

Low Profile GPS/GSM antenna

The combination of a high gain GPS antenna and 2 dBi GSM band antenna is ideal for those applications that requires durability, compact size, covert installation and ruggedized construction. Features a magnetized base for easy instalation.

Please call 650-692-8100 for pricing!



Specifications
    Dielectric GPS Antenna
  • Center Frequency 1575.42MHz±3 MHz
  • V.S.W.R 1.5:1
  • Band Width ±5 MHz
  • Impedance 50 ohm
  • Peak Gain ＞3dBic Based on 7×7cm ground plane
  • Gain Coverage ＞-4dBic at –90°＜0＜+90°(over
  • 75% Volume)
  • Polarization RHCP

    • GSM Antenna
  • Center Frequency 850/900/1800/1900Mhz
  • Typical Gain 2dBi+/-1dB@850MHZ
  • 2dBi+/-1dB@900MHZ
  • 1dBi+/-1dB@1800MHZ; 1dBi+/-1dB@1900MHZ
  • V.S.W.R 2.0:1
  • Impedance 50 ohm
  • LNA/Filter
  • LNA Gain(Without cable) 28dB Typical
  • Noise Figure 1.5dB
  • Filter Out Band Attenuation (f0=1575.42 MHZ)
  • 7dB Ｍin f0+/-20MHZ ;
  • 20dB Ｍin f0+/-50MHZ;
  • 30dB Ｍin f0+/-100MHZ
  • V.S.W.R ＜2.0
  • DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
  • DC Current 11mA Max

    • Mechanical
  • Weight ＜240gram
  • Size 80 mm(D)×13mm(H)
  • Cable GPS-----RG174 10ft
  • GSM-----RG174 2meter, 10ft
  • Connector GPS----
  • SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
  • GSM-----SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
  • Mounting Adhesive /Magnetic/Screw Mounting
    Housing Black

    • Environmental
  • Working Temp. -40℃~+85℃
  • Storage Temp. -45℃~+100℃
  • Vibration Sine sweep 1g(0-p)10~50~10Hz eace axis
  • Humidity Humidity95%~100%RH
    Weatherproof 100%Waterproof
