GSM / GPS Antennas

Available with Magentic and Thru-Hole mounts

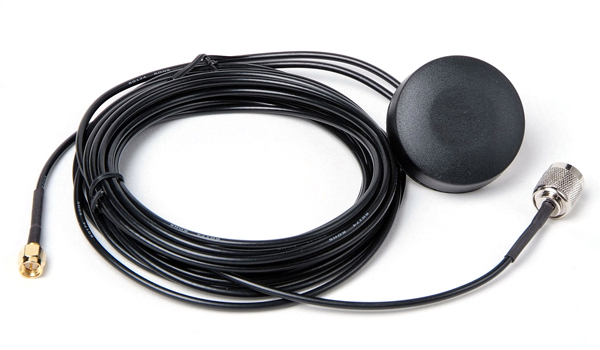

Low Profile GPS/GSM antenna

The combination of a high gain GPS antenna and 2 dBi GSM band antenna is ideal for those applications that requires durability, compact size, covert installation and ruggedized construction. Features a magnetized base for easy instalation.

GSM / GPS Antennas Specifications:
Dielectric GPS Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impedance 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over
75% Volume
Polarization RHCP
GSM Antenna
Center Frequency 850/900/1800/1900Mhz
Typical Gain 2dBi+/-1dB@850MHZ
2dBi+/-1dB@900MHZ
1dBi+/-1dB@1800MHZ; 1dBi+/-1dB@1900MHZ
V.S.W.R 2.0:1
Impedance 50 ohm
LNA/Filter
LNA Gain(Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Ｍin f0+/-20MHZ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 11mA Max
Mechanical
Weight <240gram
Size 80 mm(D)×13mm(H)
Cable GPS-----RG174 10ft
GSM-----RG174 2meter, 10ft
Connector GPS----SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
GSM-----SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
Mounting Adhesive/Magnetic/Screw Mounting
Housing Black
Environmental
Working Temp. -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz eace axis
Humidity Humidity95%~100%RH
Weatherproof 100% Waterproof
