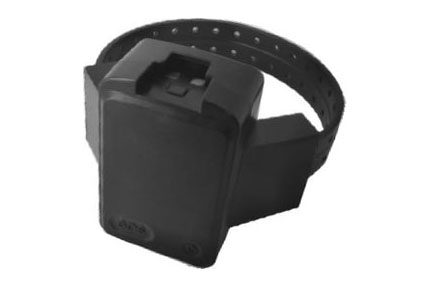

CAT-65 4G

Ankle Tracker Tracking Device

The waterproof CAT-65 4G is a small and light 4G GPS locator designed for parolee, elderly, and lone worker tracking applications.  It can also be used for animal/pet tracking application.  Its built in GPS receiver has superior sensitivity and fast time to first fix.  Its built in U blox GPS module, GPRS module and low power ARM processor allows the CAT-65 4G's location to be monitored in real time or periodically tracked by a backend server and mobile devices.

System integration is straightforward as complete documentation is provided for the full featured protocol including alerts, geo-fence boundary crossings, low battery and scheduled GPS position.

Dimensions:
  • 70 x 42 x 25 mm
Highlights:
  • AGPS position assisted, WiFi / LBS position assisted when no GPS
  • Data Logger in no GSM signal area using 64Mbit flash
  • Support up to 3 authorized cell phone numbers
  • Long-standby time
  • Belt off / on alarm
Advantages:

  • Waterproof IP67 / IP68
  • Quad band GSM/GPRS 850/900/1800/1900 MHz, Dual Band UMTS/HSDPA 900/2100MHz, LTE FDD 700(B2)/1700(B4)/1900(B12)
  • Embedded full featured protocol
  • Internal u-blox chipset
  • Internal WCDMA/GPS antennas
  • SMS and GPRS (TCP/UDP) communication
  • SOS emergency calling
  • Various alarms support: low battery, geo-fence, over-speed, etc.
  • FCC and CE certified
CAT-65 4G Data Sheet » Data Sheet
