Motorcycle Tracking Device

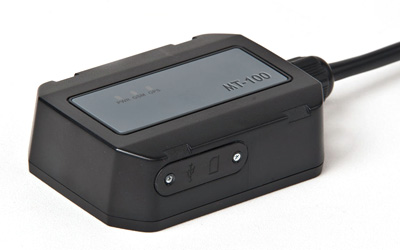

The MT-100 is a powerful GPS locator designed for vehicle or asset tracking.  It has superior receiver sensitivity, fast TTFF (Time to First Fix) and supports Quad-Band GSM frequencies 850/900/1800/1900, its location can be monitored in real time or be periodically tracked by a backend server or other specified terminals.

The MT-100 has multiple input/output interfaces that can be used for monitoring or controlling external devices.  Based on the integrated @Track protocol, the MT-100 can communicate with a backend server through the GPRS/GSM network to transfer reports of Emergency, geo-fence boundary crossings, low backup battery or scheduled GPS position as well as many other useful functions.  Users can also use MT-100 to monitor the status of a vehicle and control the vehicle by its external relay output.

System Integrators can easily setup their tracking systems based on the full-featured @Track protocol.

  • 86 x 62 x 26 mm
  • Wide Operating Voltage Range 8V to 32V DC
  • Multiple I/Os
  • Zero Power Consumption When Ignition off
  • Water Resistant, IPX6 Compliant
  • Built-in Relay With Latch Circuit
  • Wide operating voltage 8V to 32V DC
  • Internal u-blox chipset
  • Low power consumption, long standby time with internal battery
  • Quad band GSM/GPRS 850/900/1800/1900 MHz
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer for power saving and motion detection
  • Power consumption can be fully configured
  • Three working power modes
  • Water resistant, IPX6 compliant
  • CE/FCC certified
